Industrial CNC Lapping Machine CNC Vertical Grinding Machine 0.05 Microns Resolution

Max.800 internal grinding diameter CNC vertical grinding machine

Main parameter

ITEM	UNIT	8CT
Electronic Control System
NC Controller	unit	32iB
Capacity
Range of internal grinding diameter	mm	Ø50-Ø800
Range of external grinding diameter	mm	Ø800
Internal Grinding Length(ID)	mm	ID<Ø250:325 ID>Ø250:500
External Grinding Length	mm	500
Swing of work spindle	mm	Ø850
Workpiece height(From the rotatory table to bottom of the wheel)	mm	600
Max.load on work table	kg	1500
X Axis Travel
Travel from Spindle center to right	mm	1340(ATC position)
Travel from Spindle center to left	mm(ATC position)	400
Travel Speed	mm/min.	0-24000
Min.setting unit	mm	0.0001
Z axis Travel
Travel	mm	800
Travel Speed	mm/min.	0-24000
Min.Setting unit	mm	0.0001
Wheel Spindle
Tool holder		HSK-A100
Wheel Spindle speed	rpm	0-10000
Wheel diameter	mm	Ø45-Ø250(advance) Ø275(MAX)
Spindle
Diamention of the work table	mm	Ø800
Spindle Speed	rpm	10-200
Automatic Tool Changer(ATC)
Tool Holder		HSK-A100
Wheel Storage capacity	tools	6
Max.Wheel(DiameterxLength)	Øxmm	Ø275x350
Max.Wheel Weight	kg	20
Tool Selection		Umbrella type
Motors
Wheel Drive Motor	Kw	15/18.5(In house)
Spindle Drive Motor	Kw	3.7/5.5(Spindle motor)
Option: 4D motor Aiczsensor 1024:±2sec(3.8/4.5)
X axis motor	kw	6
Z axis motor	kw	6
machine weight, space and packing
Floor Space	mm	4073x3450
machine height	mm	3644
Power capacity	Kva	33
Net weight	kg	16000

Standard configuration
Spindle cooling system	Turning Wheel
X/Z axis linear scale	Pilot Lamp
Bolts and leveling blocks	Permanent electromagnetic disc.
Auto lubricating system	Spindle oil mist lubrication system
User's manual	Oil mist collector
Air Spray
Full Splash Guard
LED work lamp(2sets)
Water blow
RS232/RJ45 port
air conditioner for electrical equipment, heat exchanger
Cooling system including water tank,magnetic and paper filter,pump
Tool kit
Tool box

Spindle Set!!

ollar Grinding!!

90 degree rotation dresser!!

Workpiece Measurement!!

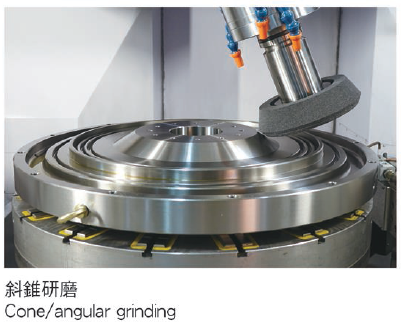

Cone/Angular grinding!!
