max.400mm internal grinding diameter CNC vertical Grinding machine

Main parameter

ITEM	UNIT	4	4D
Electronic Control System
NC Controller	unit	0i-TF	0i-TF
Capacity
Range of internal grinding diameter	mm	Ø50-Ø400	Ø50-Ø400
Range of external grinding diameter	mm	Ø450	Ø450
Internal Grinding Length(ID)	mm	ID<Ø225:225	ID>Ø225:300
External Grinding Length	mm	325	325
Swing of work spindle	mm	Ø450	Ø450
Workpiece height(From the rotatory table to bottom of the wheel)	mm	300	300
Max.load on work table	kg	250	250
X Axis Travel
Travel from Spindle center to right	mm	300	300
Travel from Spindle center to left	mm(ATC position)	690	690
Travel Speed	mm/min.	0-24000	0-24000
Min.setting unit	mm	0.0001	0.0001
Z axis Travel
Travel	mm	400	400
Travel Speed	mm/min.	0-24000	0-24000
Min.Setting unit	mm	0.0001	0.0001
Wheel Spindle
Tool holder		HSK-A63	HSK-A63
Wheel Spindle speed	rpm	0-20000	0-20000
Wheel diameter	mm	Ø45-Ø150	Ø45-Ø150
Spindle
Diamention of the work table	mm	Ø450	Ø450
Spindle Speed	rpm	20-200	20-200
Automatic Tool Changer(ATC)
Tool Holder		HSK-A63	HSK-A63
Wheel Storage capacity	tools	8	8
Max.Wheel(DiameterxLength)	Øxmm	Ø150x250	Ø150x250
Max.Wheel Weight	kg	8	8
Tool Selection		Umbrella type	Umbrella Type
Motors
Wheel Drive Motor	Kw	11/15(In house)	11/15(In House)
Spindle Drive Motor	Kw	3.7/5(Spindle motor)	3.8/4.5(directly drive water cooling) ±2Sec.
Option: 4D motor Aiczsensor 1024:±2sec(3.8/4.5)
X axis motor	kw	3	3
Z axis motor	kw	4	4
machine weight, space and packing
Floor Space	mm	3303x2290	3303x2290
machine height	mm	3150	3150
Power capacity	Kva	33	33
Net weight	kg	7000	7000

Standard configuration
Spindle cooling system	Turning Wheel
X/Z axis linear scale	Pilot Lamp
Bolts and leveling blocks	Permanent electromagnetic disc.
Auto lubricating system	Spindle oil mist lubrication system
User's manual	Oil mist collector
Air Spray
Full Splash Guard
LED work lamp(2sets)
Water blow
RS232/RJ45 port
air conditioner for electrical equipment, heat exchanger
Cooling system including water tank,magnetic and paper filter,pump
Tool kit
Tool box

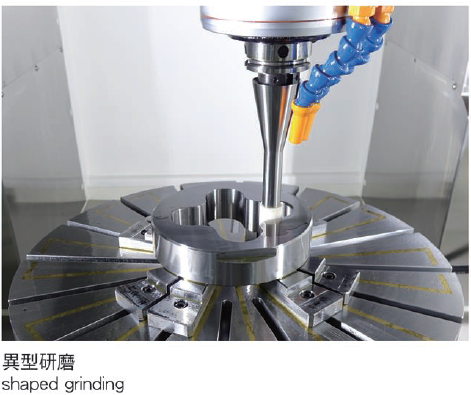

Shaped Grinding

Mist collector and cooling system for spindle

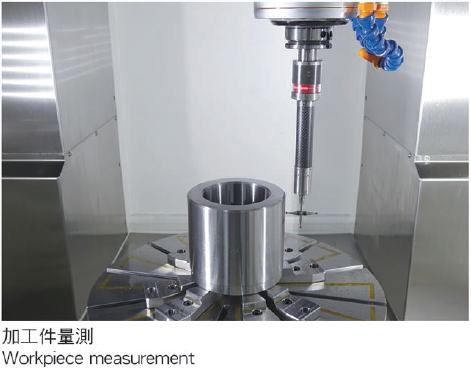

workpiece measurement

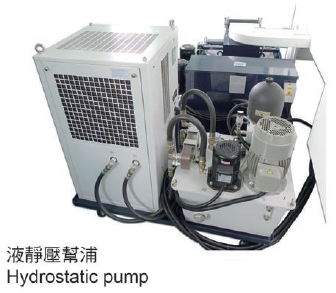

Hydrostatic Pump

Auto Dressing and compensation

Tool Magazine
